EAxxx Steel Plant UHPφ350mm using for 30-ton Electric Arc Furnace

Discuss electrode performance with customers

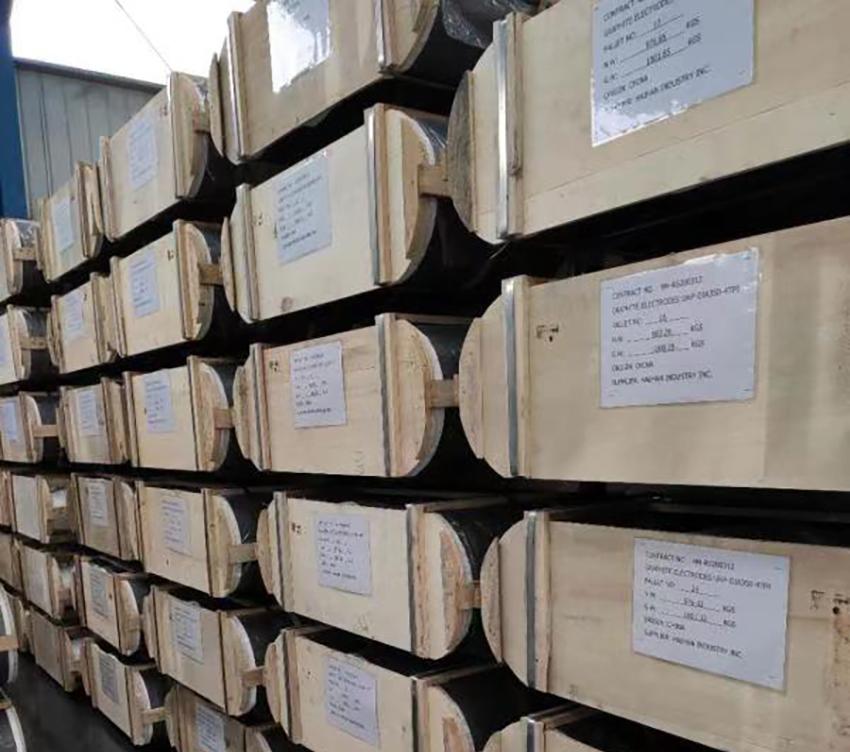

UHP φ350mm graphite electrode

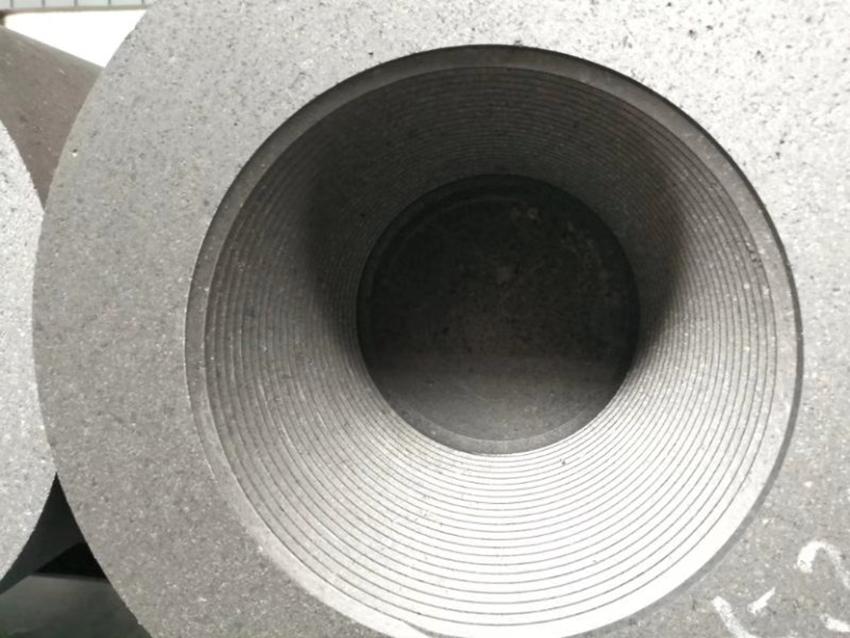

Graphite electrode threads

Time: March 26, 2019

Steel plant name: EAxxx Steel Plant

Furnace condition information:

Transformer capacity(kVA): 16000

Working Current(A): 20000-25000

Furnace Capacity(t): 30

Production per Heat: 25-30

Tap to Tap Time(min): 65-60

Usage overview:

In March 2019, EAxxx Steel Plant began using our φ350mm ultra-high power (UHP) electrode for a 30-ton electric arc

 furnace, and it has been used well so far.

Electrode grade: UHP

Electrode diameter: φ350mm

Electrode length: 1800mm

Nipple Type: T4

Steel Type: ordinary steel

Scrap steel: 35-40 tons

No.of Charges per heat: 3 times

Electrode connection: cold connection

Average monthly output: 19800~21000 tons

Consumption Quantity: 2.5~3.0kg/ton steel
