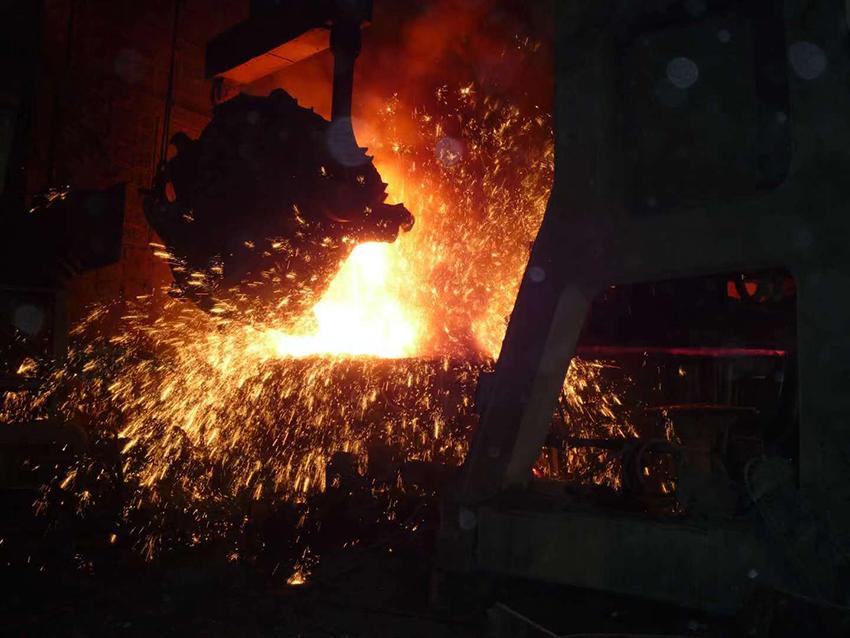

GFxxx Steel Plant HPφ350mm using for 50-ton Electric Arc Furnace

HPφ350mm using for 50-ton Refining Furnace

Time: August 12, 2010

Steel plant name: GFxxx Steel Plant

Furnace condition information:

Transformer capacity(kVA): 10000

Working Current(A): 25000-30000

Furnace Capacity(t): 50

Production per Heat: 55-60

Tap to Tap Time(min): 35-40

Usage overview:

In August 2010, GFxxx Steel Plant began using our φ350mm high-power (HP) electrode for a 50-ton refining

furnace, and it has been in good use so far.

Electrode grade: HP
Electrode diameter: φ350mm
Electrode length: 1800mm
Nipple Type: T4L

Steel Type: mainly ordinary steel

Electrode connection: cold connection

Average monthly output: 64000~68000 tons
Consumption Quantity: 0.8~1.1kg/ton steel
