GFxxx Steel Plant UHPφ450mm using for 50-ton Electric Arc Furnace

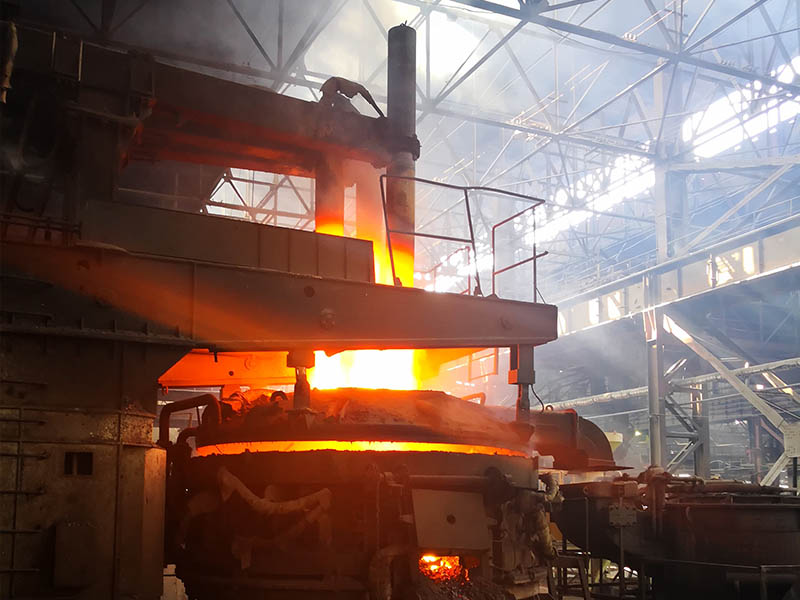

UHPφ450mm using for 50-ton Electric Arc Furnace

Group photo with customers

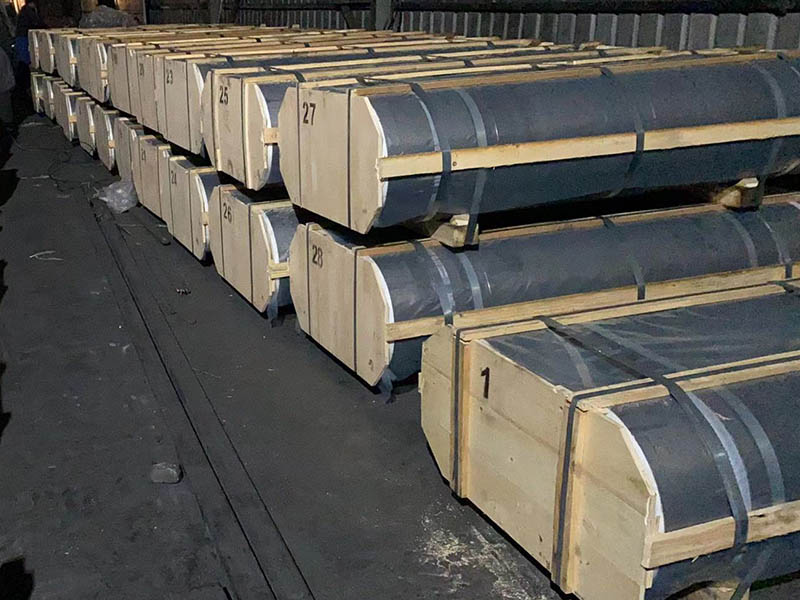

φ450mm finished graphite electrode

Time: August 12, 2010

Steel plant name: GFxxx Steel Plant

Furnace condition information:

Transformer capacity(kVA): 35000

Working Current(A): 35000-40000

Furnace Capacity(t): 50

Production per Heat: 55-60

Tap to Tap Time(min): 65-70

Usage overview:

In August 2010, GFxxx Steel Plant began using our φ450mm ultra-high power (UHP) electrodes for 50-ton electric arc

furnaces, which have been in good use so far.

Electrode grade: UHP

Electrode diameter: φ450mm

Electrode length: 2100mm

Nipple Type: T4L

Steel Type: ordinary steel

Scrap steel: 50-55 tons

No.of Charges per heat: 3 times

Electrode connection: cold connection

Average monthly output: 33000~35000 tons

Consumption Quantity: 3.0~3.5kg/ton steel
