What Is The Raw Material For Graphite Electrodes?

The raw material for Graphite electrodes is typically petroleum coke, which is a carbon-rich solid derived from oil refining. The petroleum coke is heated to high temperatures in an electric furnace, which causes it to graphitize and become a high-purity form of carbon. Other materials, such as coal tar pitch and various types of additives, may also be used in the production of graphite electrodes.

Once the petroleum coke is graphitized, it is crushed and ground into fine particles, which are then mixed with pitch and other additives to form a paste-like substance. This paste is then extruded through a shaped die to create the desired shape and size of the graphite electrode.

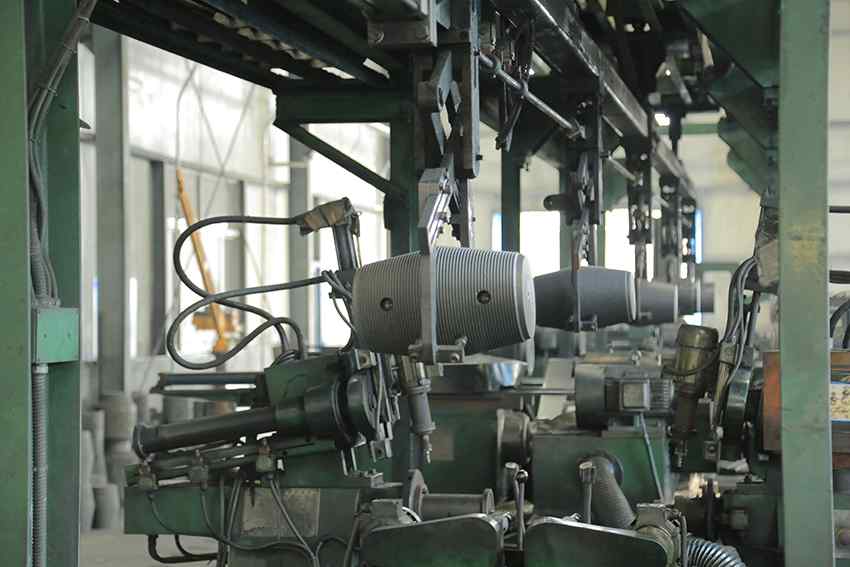

The extruded electrodes are then baked in an oven to remove any remaining volatiles and further improve their mechanical strength. Finally, the electrodes are machined to their final dimensions and coated with a layer of graphite to improve their performance and reduce their oxidation during use.

Graphite electrodes are widely used in the steelmaking industry for the production of steel, as well as in other high-temperature applications such as electric arc furnaces, aluminum smelting, and other metallurgical processes. They are prized for their high electrical conductivity, low thermal expansion, and resistance to thermal shock and corrosion.

What matters should be paid attention to in the storage of Graphite electrodes in steel mills?

1. Place the graphite electrode on a wooden or iron frame.

2. Do not unpack the unused electrodes.

3. The damp electrode should be dried before use.

What are the raw materials for electrodes?

The raw materials for electrodes depend on the type of electrode. For instance, the raw material for graphite electrodes is typically petroleum coke, which is a carbon-rich solid derived from oil refining. Other types of electrodes may be made from materials such as tungsten, copper, or other metals, depending on their intended use.

How are graphite electrodes manufactured?

Graphite electrodes are manufactured by first heating petroleum coke to high temperatures in an electric furnace to graphitize it, which converts it into high-purity carbon. The graphitized petroleum coke is then crushed and ground into fine particles and mixed with pitch and other additives to create a paste. This paste is extruded through a shaped die to create the desired shape and size of the electrode. The extruded electrodes are then baked in an oven to remove any remaining volatiles and improve their mechanical strength. Finally, the electrodes are machined to their final dimensions and coated with a layer of graphite to improve their performance and reduce oxidation during use.

Why is graphite used as the material for the electrodes?

Graphite is used as the material for electrodes due to its unique combination of properties, including high electrical conductivity, low thermal expansion, and resistance to thermal shock and corrosion. These properties make graphite electrodes ideal for use in high-temperature applications such as steelmaking and other metallurgical processes, where they can withstand extreme temperatures and harsh environments. Additionally, graphite is a relatively low-cost material that is readily available, making it a cost-effective choice for electrode manufacturing.
